Description
Key Features
- Chassis: 0.12″ (3mm) thick aluminum, with composite plastic side guards, and front and rear composite chassis braces
- Drive: Four wheel shaft drive
- Motor: BLX 2050Kv brushless with aluminum motor mount, 12T pinion gear
- Steering Servo: Arrma ADS-15M waterproof metal gear
- Radio Box: Waterproof, easily removed for servicing
- Electronic Speed Control: BLX185 150A with automatic setup w/male XT90 connectors, cooling fan, 6S capable
- Suspension: Race-proven roll bars, front and rear, tunable turnbuckles, pivot ball front suspension
- Differentials: Three gear type
- Tires: dBoots Exabyte multi-surface with foam inserts
- Wheels: Multi-spoke, black in color, diameter: 3.3″ (83mm),
- width: 1.6″ (41mm), hex size: 17mm
- Steering: Adjustable servo saver, aluminum servo horns for fast responsive steering, aluminum top plate
- Shocks: 16mm aluminum body, oil-filled
- Shock Towers: 0.20″ (5mm) thick aluminum. black anodized in color
- Body: Trimmed and painted, black nylon rear wing
- Camber: Adjustable rear only, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
- Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
Specifications
- Vehicle
- Length: 20 in (508mm)
- Front Width: 12.2″ (310mm)
- Rear Width: 12 in (306mm)
- Height: 7.2 in (183mm)
- Wheelbase:12.9 (328mm)
- Ground Clearance: 1.0 in (25mm)
- Weight: 7.3lb (3.27kg)
- Internal Gear Ratio: 3.3:1
- Body
- Length: 12.8″ (325mm)
- Width: 7.2″ (183mm)
- Height: 3.9″ (100mm)
| Completion Level: | Ready-To-Run |
| Drivetrain: | 4WD |
| Motor Size: | 2050Kv |
| Motor Type: | Brushless |
| Size/Scale: | 1/8 |
| Vehicle Type: | Buggy |
Needed to Complete
- Two 2-3S 5000mAh 35C minimum LiPo with XT90 connector, or one 4-6S LiPo battery
- Suitable Charger
- LiPo charge bag
What’s in the box?

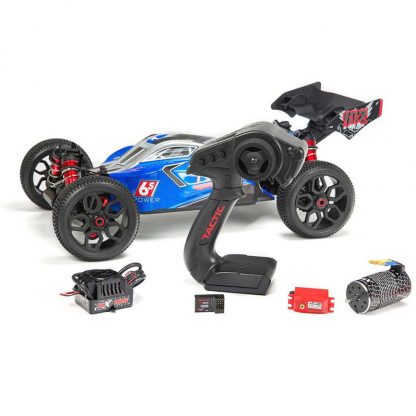

- (1) RTR Typhon Speed Buggy with Brushless Motor, ESC, 2.4GHz Radio and Painted Body
- (1) User Manual
